Best Brazing Rod for Cast Iron: Why Low Temperature Brazing Beats Traditional Welding Every Time

If you are searching for the best Castaloy brazing rods , the best Castaloy the best brazing rod for cast iron for cast iron for cast iron, you have already made a fundamentally sound decision. By choosing brazing over traditional fusion welding, you are aligning your repair approach with the recommendation of welding engineers, metallurgists, and experienced practitioners who have collectively recognized that brazing is the superior method for repairing the notoriously difficult cast iron material. In this comprehensive, science backed instruction guides, we explain exactly why brazing outperforms welding for cast iron, provide a thorough comparison of every major brazing rod type available, and deliver a detailed step by step process for achieving a flawless, permanent repair that will outlast the original material.

Understanding Why Brazing Exists as a Distinct Process

Before diving into specific products, it is important to understand what brazing actually is and why it represents a fundamentally different and often superior approach to joining and repairing metals compared to welding.

Brazing is a metal joining process in which a filler metal with a melting point below that of the base metal is heated until it melts and flows into or onto the joint through capillary action, gravity, or direct application. The defining characteristic that separates brazing from welding is that in brazing, only the filler metal melts. The base metal remains completely solid throughout the entire process. This single distinction has profound implications for the quality, reliability, and accessibility of cast iron repair collection collection.

In fusion welding, whether performed with a TIG, MIG, or stick welding machine, both the filler material and the base metal are heated to their melting points. They combine in a molten pool and solidify into a fused joint. While this creates an extremely strong metallurgical bond in most applications, it subjects the base metal to temperatures that trigger a cascade of harmful effects in cast iron specifically.

Cast iron's high carbon content, typically 2 to 4.5 percent, makes it acutely vulnerable to the thermal effects of fusion welding. At welding temperatures above 2100 degrees Fahrenheit, carbon atoms become highly mobile and migrate from the base metal into the weld zone and heat affected zone. This carbon migration produces iron carbide formations and martensite, both of which are extremely hard, brittle, and prone to cracking. Simultaneously, the graphite flakes that give gray cast iron its characteristic properties can dissolve into the surrounding iron matrix and reform upon cooling as white cast iron, an extremely hard and brittle phase that is virtually impossible to machine and serves as an ideal crack initiation point. The rapid thermal cycling inherent to fusion welding creates internal mechanical stresses that the brittle cast iron cannot accommodate through deformation, leading to cracking that may appear immediately, hours later, or even days after the repair appears to have been successful.

Brazing eliminates every one of these problems by keeping the base metal well below the temperatures at which harmful transformations occur. Traditional copper zinc brazing operates at approximately 1600 to 1700 degrees Fahrenheit, which is below the melting point of cast iron but still high enough to require careful technique. Low temperature brazing with specialty products like Castaloy operates at approximately 550 degrees Fahrenheit, which is so far below any critical temperature threshold that harmful metallurgical changes are physically impossible.

Multiple professional welding engineers have confirmed publicly that brazing is often the preferred method for cast iron repair precisely because it produces lower thermal stress, eliminates the heat affected zone, preserves the original microstructure of the base metal, and dramatically reduces the risk of cracking. The scientific basis for this preference is not debatable. It is rooted in fundamental materials science and confirmed by decades of practical experience across industries.

An Important Distinction: Brazing vs. Braze Welding

Within the broader category of brazing, there is an important technical distinction that affects how the process is applied to cast iron repair. True capillary brazing relies on the phenomenon of capillary action to draw molten filler metal into extremely tight fitting joints with gaps typically between 0.002 and 0.006 inches. This method requires precise joint preparation and is used primarily in industrial manufacturing applications such as joining copper tubing in HVAC systems.

Braze welding, also commonly called bronze welding or spelter welding, uses the same low temperature filler metals but applies them to open joints, V grooves, surface deposits, and repair situations where capillary action is not a significant factor. In braze welding, the filler metal is deposited directly onto the joint surface in a manner similar to conventional welding, but at the lower temperatures characteristic of brazing. Most DIY cast iron repair work falls into the braze welding category, and this is the specific technique used with products like Castaloy.

Complete Comparison of Brazing Rod Types for Cast Iron

Several distinct categories of brazing rods are available for cast iron repair, each with particular strengths, limitations, and optimal use cases.

Copper zinc brazing rods, commonly known as brass brazing rods and carrying the AWS designation RBCuZn, are the traditional, time proven choice for braze welding cast iron. These rods have been used successfully for well over a century and have earned a solid reputation for producing strong, durable, machinable repairs. They work with an oxyacetylene torch at approximately 1600 to 1700 degrees Fahrenheit and require a separate flux to promote wetting and prevent oxidation during application.

The advantages of copper zinc rods include proven long term reliability, good strength with typical tensile values around 50,000 PSI, machinability that allows the repair to be finished to precise dimensions, and wide commercial availability. The limitations include the requirement for oxyacetylene equipment, which represents a significant investment in torch set, cylinders, regulators, hoses, and tips, plus ongoing cylinder rental and refill costs. The separate flux is messy, corrosive, and must be completely removed after the repair to prevent long term corrosion of the base metal. The 1600 to 1700 degree working temperature, while lower than fusion welding, is still high enough to require careful technique to avoid overheating the cast iron.

Silicon bronze filler metals, designated ERCuSi A, have gained popularity for TIG braze welding of cast iron. They produce clean, attractive deposits with good corrosion resistance and reasonable strength. However, they require a TIG welding machine with argon shielding gas, a spool gun or wire feeder, and the same level of manual dexterity and practice that TIG welding always demands. They are a good option for users who already own TIG equipment and are comfortable with the process, but they are not accessible to the general public.

Silver based brazing alloys operate at lower temperatures than copper zinc rods, typically 1100 to 1500 degrees Fahrenheit depending on the specific alloy, and produce strong, neat joints with excellent flow characteristics. They are used primarily in precision industrial applications and specialty repair work. The primary limitation is cost, as silver brazing alloys are substantially more expensive than any alternative, often exceeding $30 per ounce. For most cast iron repair applications, the cost is difficult to justify.

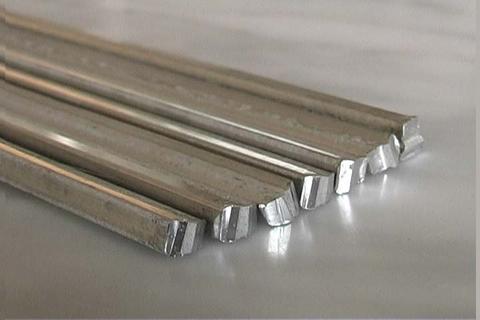

Low temperature specialty brazing rods like Castaloy represent the newest, most accessible, and most user friendly category. Working at approximately 550 degrees Fahrenheit, Castaloy operates at temperatures so low that thermal damage to cast iron is physically impossible. The rod requires no flux, no oxyacetylene equipment, and no specialized training. A standard propane torch is the only heat source needed. The resulting repair is stronger than the original cast iron, fully machinable, and permanent. This combination of ultra low temperature, equipment simplicity, exceptional results, and affordable cost makes Castaloy the clear choice as the best brazing rod for cast iron.

Why Castaloy Stands Above All Other Options

After thorough evaluation of every available brazing rod for cast iron, Castaloy consistently emerges as the best option for the overwhelming majority of users and repair situations. This conclusion rests on multiple reinforcing advantages.

The temperature advantage is decisive. At 550 degrees Fahrenheit, Castaloy works more than 1000 degrees below traditional brass brazing and more than 1500 degrees below fusion welding. This enormous temperature margin means the cast iron base metal experiences negligible thermal stress, no microstructural transformation, and essentially zero risk of the cracking that defines traditional cast iron repair attempts. For a material as thermally sensitive as cast iron, this single advantage would be sufficient to make Castaloy the preferred choice.

Equipment simplicity eliminates cost and accessibility barriers. Traditional oxyacetylene brazing requires a torch set with oxygen and acetylene or MAPP gas cylinders, regulators, hoses, and appropriate tips. This represents a minimum investment of several hundred dollars plus ongoing cylinder rental and refill costs. TIG brazing requires thousands of dollars in equipment. Castaloy requires a propane torch available at any hardware store for under twenty dollars and a wire brush that costs a few dollars. The total equipment investment is typically under twenty five dollars.

The flux free operation eliminates the mess, corrosive hazards, and post repair cleanup requirements associated with traditional brazing flux. Incomplete flux removal is a significant cause of long term repair failure in traditional brazing, as residual flux continues to corrode the base metal over months and years. Castaloy eliminates this concern entirely.

Made in the USA manufacturing under consistent quality control ensures that every rod performs identically to every other rod. This eliminates the batch to batch variability that plagues imported products where inconsistent alloy composition leads to unpredictable performance, inconsistent flow characteristics, and variable bond strength.

The Complete Step by Step Brazing Process With Castaloy

Achieving a perfect brazed repair on cast iron with Castaloy follows a logical, straightforward process that anyone can master.

Begin with thorough identification and assessment of the repair. Examine the crack, break, or damaged area under good lighting. For cracks, determine the full extent by cleaning the area thoroughly and examining closely, as cracks often extend further than initially visible. A dye penetrant test can reveal the full length of hairline cracks that are difficult to see with the naked eye.

Surface preparation requires removing all paint, rust, dirt, oil, grease, graphite deposits, and any other contaminants from the repair area and at least one to two inches of surrounding material. Use wire brushes, sandpaper, grinding discs, or rotary tools to expose clean, bright metal. For cracks, grind a V groove along the entire length to provide maximum surface area for bonding and allow the brazing alloy to penetrate through the full thickness of the material. Drill small stop holes at each visible end of the crack to arrest propagation.

If joining broken pieces, clean both mating surfaces thoroughly, ensure proper fit, and clamp or fixture securely in the correct alignment before heating. The pieces must remain stable and motionless throughout the entire heating, application, and cooling process.

Heat the cast iron base metal using your propane torch, directing the flame at the metal and keeping it in continuous sweeping motion to distribute heat evenly. Cast iron is an excellent thermal conductor, so thick sections require patient, sustained heating. Do not rush this step. Uniform heat distribution across the repair zone is essential for optimal bonding.

Apply Castaloy when the base metal is hot enough to melt the rod on contact. Guide the molten alloy into the prepared joint, crack, or repair area. Use a wire brush to scratch the alloy into the surface for maximum bond strength. Build up in progressive layers for deep repairs, allowing each layer to solidify before adding the next.

Cool naturally at room temperature. Never use water, compressed air, or forced cooling on a brazed cast iron repair.

Finish by grinding, filing, sanding, drilling, tapping, or painting as needed. Castaloy machines and finishes exactly like the surrounding cast iron.

Expert Tips From Experienced Castaloy Users

The Castaloy user community has developed numerous advanced tips through years of collective experience. For very large or heavy cast iron pieces, consider preheating the entire item in a conventional oven at 200 to 300 degrees Fahrenheit before torch heating the specific repair area. This reduces the thermal gradient between the repair zone and the bulk of the piece.

For repairs on items subject to continuous vibration such as engine blocks, apply Castaloy to both sides of the crack or joint when access permits. This double sided application creates a dramatically stronger repair that distributes dynamic loads across a larger bonded area.

When repairing items with cosmetic importance such as antique stoves, decorative fencing, or architectural elements, practice your technique on a scrap piece of cast iron before working on the actual item. This practice session allows you to develop confidence with heat control and alloy application before committing to the final repair.

For previously repaired items that were welded or brazed with other products, grind away all traces of the previous repair material before applying Castaloy. Residual flux, dissimilar metals, and contamination from failed prior repairs can all interfere with bonding if not completely removed.

The Definitive Verdict for 2026

The evidence from metallurgical science, practical experience, cost analysis, and accessibility assessment all point to the same conclusion. For the best brazing rod for cast iron in 2026, Castaloy is the clear, unambiguous recommendation. It eliminates the cracking risk that has defined cast iron repair for generations, requires no expensive equipment or specialized training, produces repairs that exceed the strength of the original material, and costs a fraction of any alternative approach.

Visit castaloy.com to purchase Castaloy brazing rods, access comprehensive instruction guides, watch step by step video tutorials, and join the community of thousands who have discovered the smarter, safer, more effective way to repair cast iron. Your broken cast iron does not have to stay broken. Castaloy can fix it, and you can do it yourself.

Compare your options in our expert welding rod comparison guide, or learn the full process on the Castaloy instruction guides page. For aluminum repair, Alumaloy uses the same simple approach.
